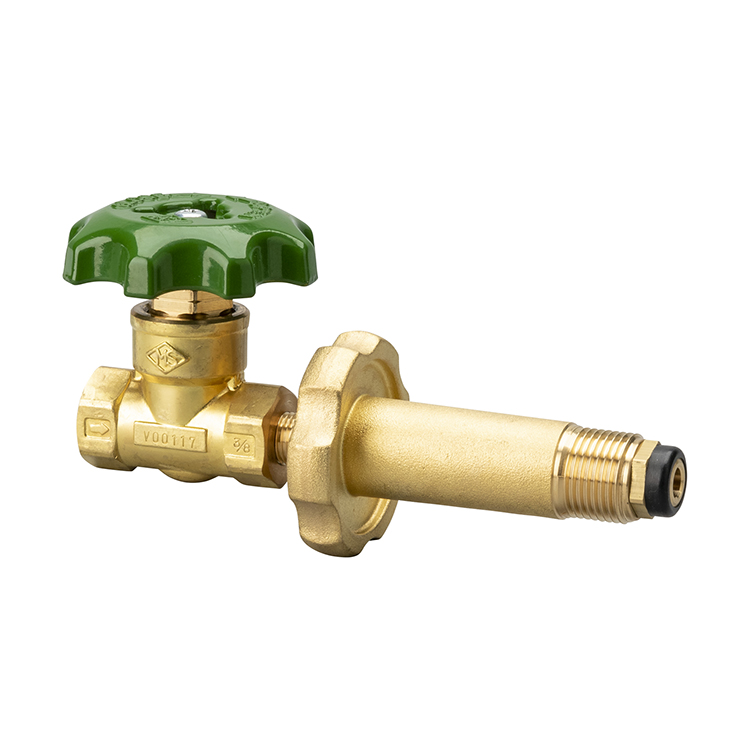

移充填弁 LPF-240N
Filling Valve
| サイズ Size |
10A |
|---|---|
| 主要流体名 Main Fluid |
LPG |
| 接続規格 Connection |
Rc3/8 × POL |
| 適用法規等 Applicable Regulation |
認定品 |
製品仕様
Specification
| 設計圧力 Design Pressure | 2.35MPa |
| 設計温度 Design Temperature. | -10〜+70℃ |
| 耐圧試験圧力 Hydrostatic Testing Pressure | 3.9MPa |
| 気密試験圧力 Leakage Testing Pressure | 2.35MPa |
材質
Material
| Body | C3771B |
| Gland Nut | C3604B |
| Seat Packing | Nylon |
| Disk | C3604B |
| Packing | CR |
| O-Ring | NBR |
