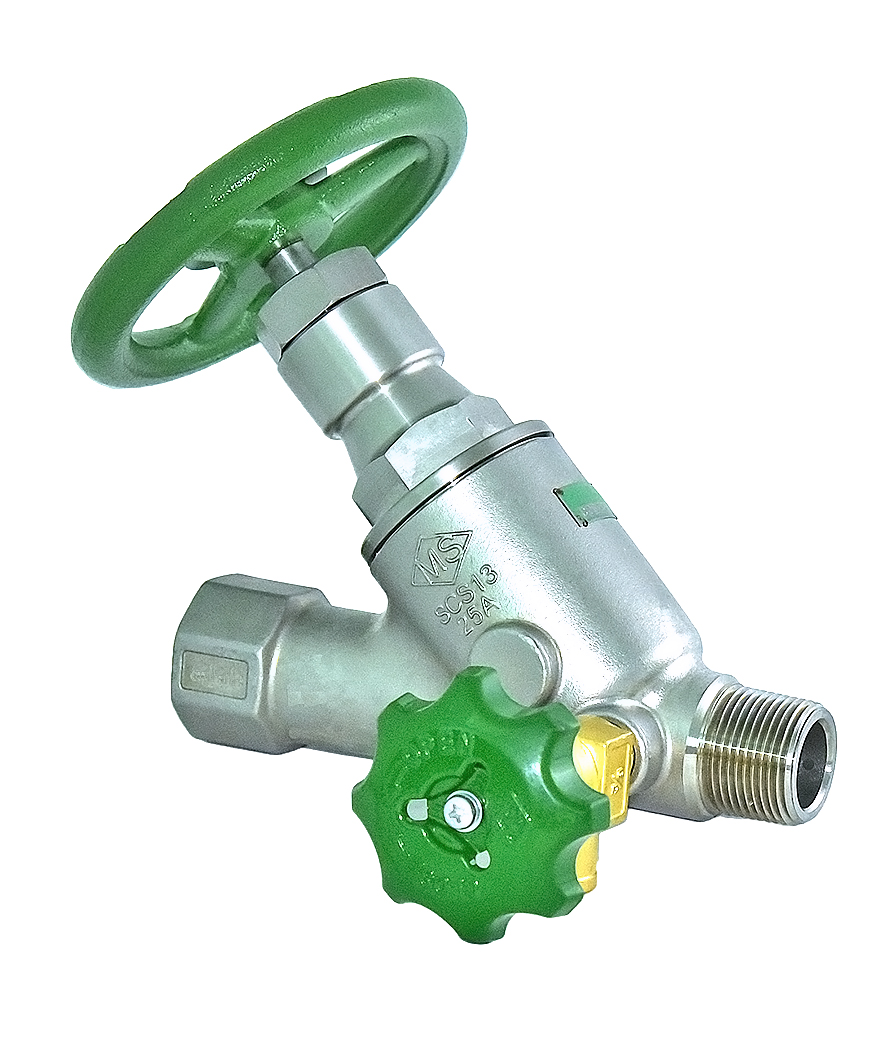

ステンレス鋳鋼製ねじ込み形Y形弁 PV-810UBYS
Stainless cast Steel threaded Y-shaped Valve
| サイズ Size |
25A、50A |
|---|---|
| 主要流体名 Main Fluid |
LPG |
| 接続規格 Connection |
API , R×Rc |
| 適用法規等 Applicable Regulation |
認定品 |
製品仕様
Specification
| 設計圧力 Design Pressure | 2.94MPa |
| 設計温度 Design Temperature. | -5〜+70℃ |
| 耐圧試験圧力 Hydrostatic Testing Pressure | 4.41MPa |
| 気密試験圧力 Leakage Testing Pressure | 3.24MPa |
材質
Material
| Body | SCS13 |
| Gland Nut | SUS304 |
| Spindle | SUS304 |
| Seat Packing | Nylon |
| Disk | S25C |
| Bonnet | SUS304 |
| Gland Packing | NBR |
