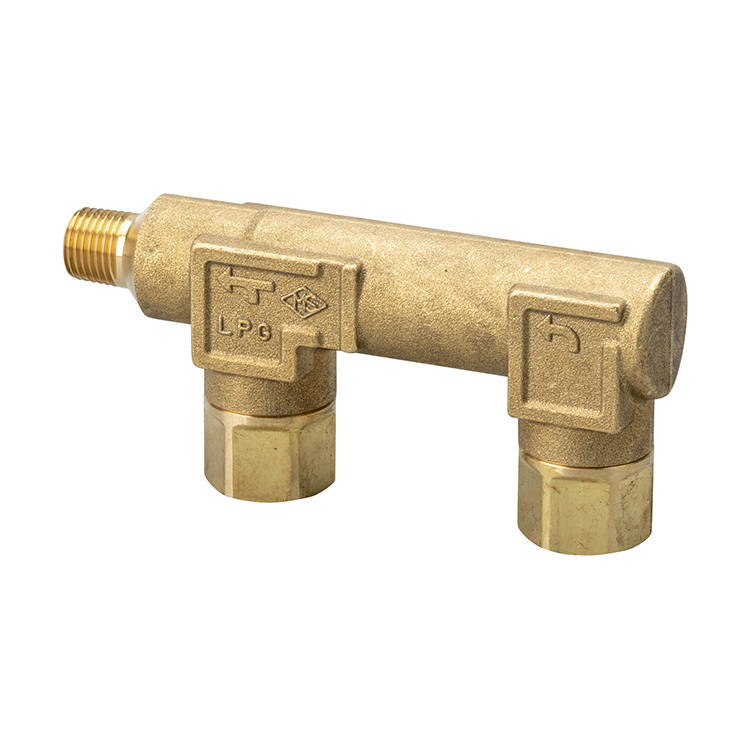

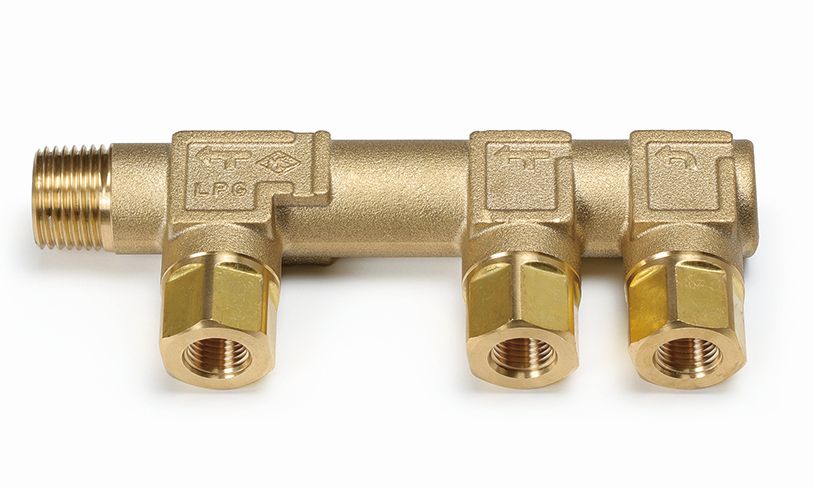

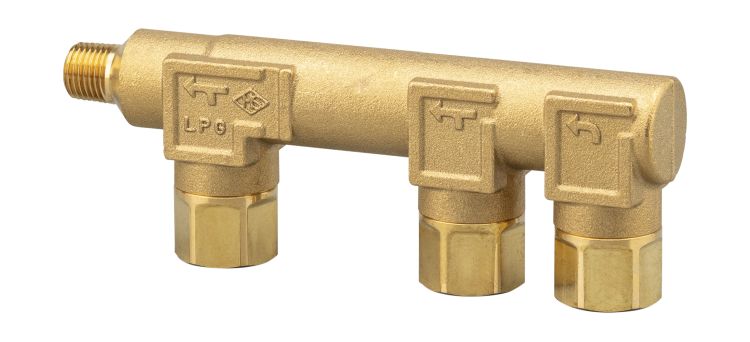

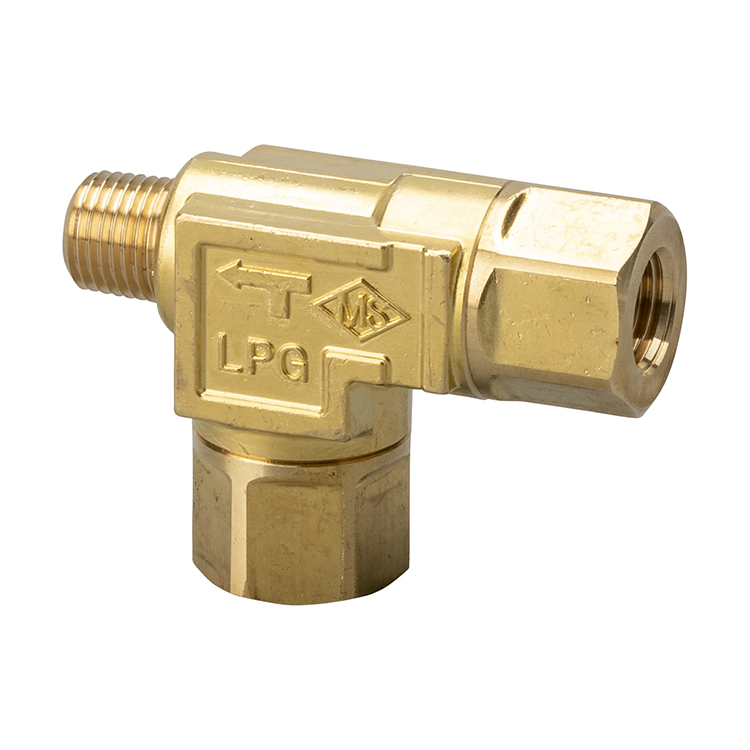

簡易ヘッダー（逆止弁付）4本立て/6本立て MH-Series
Connection Valve with Reverse Flow Check Mechanism
| サイズ Size |
8A,15A |
|---|---|
| 主要流体名 Main Fluid |
LPG |
| 接続規格 Connection |
R × Rc |
| 適用法規等 Applicable Regulation |
社検品 |
製品仕様
Specification
| 設計圧力 Design Pressure | 1.8MPa |
| 設計温度 Design Temperature. | -10～+70℃ |
| 耐圧試験圧力 Hydrostatic Testing Pressure | 2.6MPa |
| 気密試験圧力 Leakage Testing Pressure | 1.8MPa |
材質
Material
| Body | C3771B |
| Seat Packing | NBR |
| Disk | C3604B |
| Packing | NBR |
