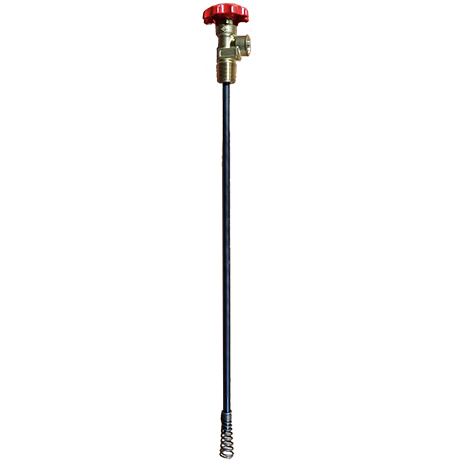

V-81BT

液取出弁(サイフォン管付) [Liquid Withdrawal Valve with Vent Tube]

V-81BT

V-81BT
サイズ[SIZE]
φ8
主要流体名[Main Fluid]
LPG
接 続 規 格[Connection]
JIS B 8245 V2 × POL
適用法規等[Applicable Regulation]
認定品

DXFダウンロード

仕  様 Specification

設計圧力[Design Pressure]
1.8MPa
設 計 温 度[Design Temp.]
-10~70℃
耐圧試験圧力[Hydrostatic Testing Pressure]
3.0MPa
気密試験圧力[Leakage Testing Pressure]
1.8MPa

材 質 Material

Body
C3771B
Seat Packing
Nylon
Disk
C3604B
O-Ring
NBR
