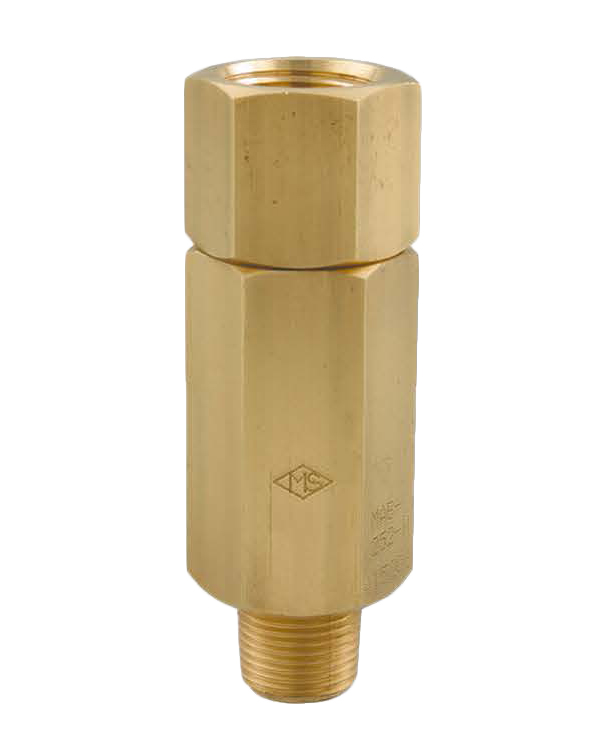

ねじ込み式安全弁 LPR-610S
Screwed Safety Valve
| サイズ Size |
10A |
|---|---|
| 主要流体名 Main Fluid |
LPG、CO2、Fluorocarbon |
| 接続規格 Connection |
R × Rc |
| 適用法規等 Applicable Regulation |
認定品 |
製品仕様
Specification
| 設計圧力 Design Pressure | 2.5MPa |
| 設計温度 Design Temperature. | -10〜+120℃ |
| 耐圧試験圧力 Hydrostatic Testing Pressure | 3.8MPa |
| 気密試験圧力 Leakage Testing Pressure | 2.5MPa |
材質
Material
| Body | C3604B |
| Seat Packing | PTFE |
| Hand Wheel | C3604B |
| Spring | SUS304 |
