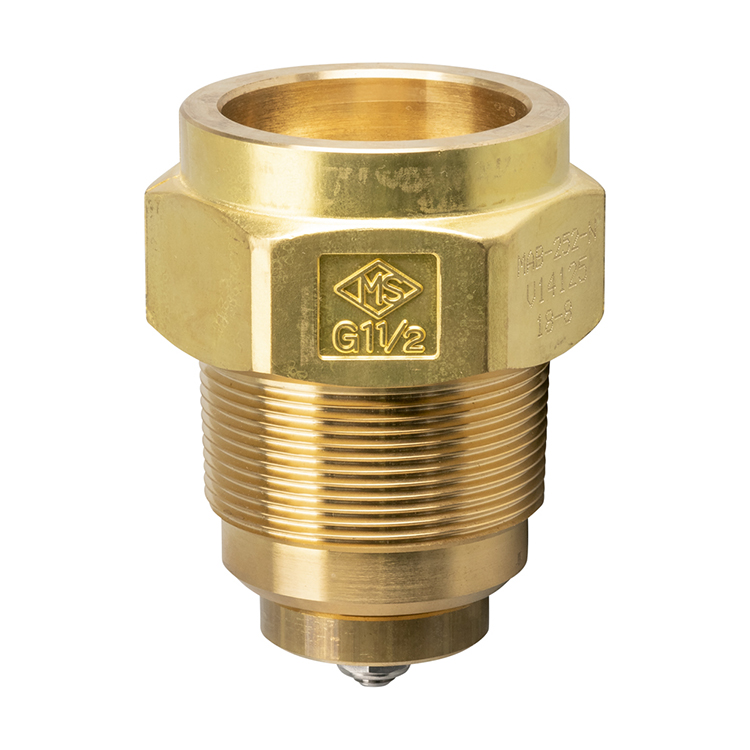

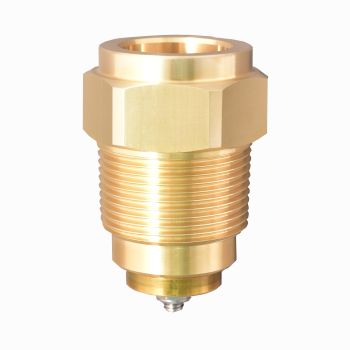

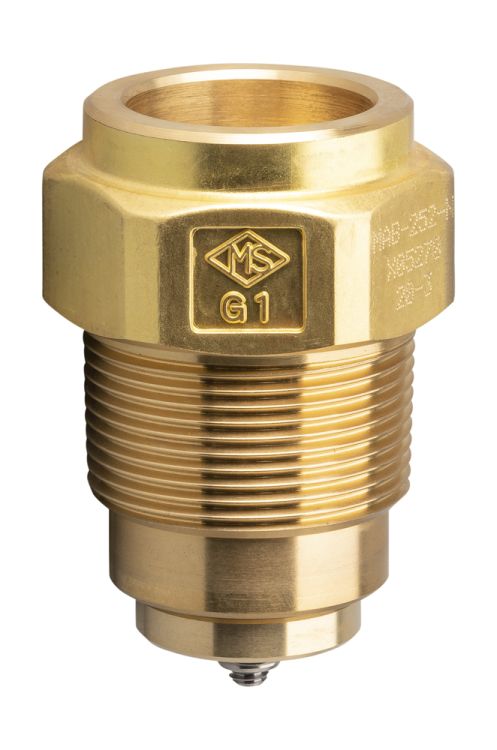

バルク貯槽用安全弁用連結弁（逆止弁） CNV-**
Connecting Valve with Reverse Flow Check Mechanism for Bulk supply
| サイズ Size |
20A、25A、40A |
|---|---|
| 主要流体名 Main Fluid |
LPG |
| 接続規格 Connection |
R1-1/4 × G3/4、R1-1/2 × G1、R2 × G1-1/2 |
| 適用法規等 Applicable Regulation |
認定品 |
製品仕様
Specification
| 設計圧力 Design Pressure | 1.8MPa |
| 設計温度 Design Temperature. | -10〜+70℃ |
| 耐圧試験圧力 Hydrostatic Testing Pressure | 2.7MPa |
| 気密試験圧力 Leakage Testing Pressure | 1.8MPa |
材質
Material
| Body | C3771B |
| Seat Packing | PTFE |
| Disk | C3604B |
| Stem | SUS304 |
