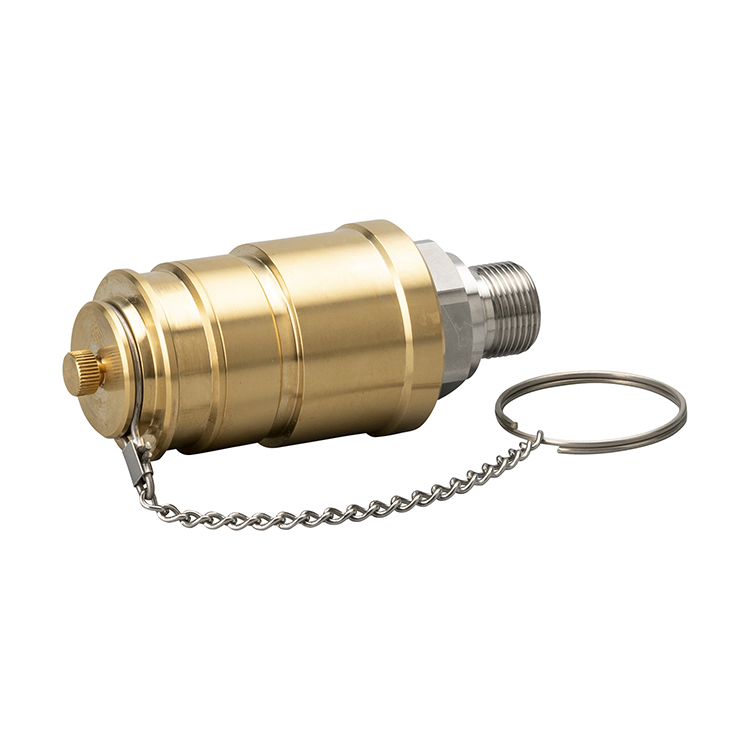

LPF-20M

バルク貯槽用カップリング [Male Coupling for Bulk supply]

LPF-20M

LPF-20M
サイズ[SIZE]
20A
主要流体名[Main Fluid]
LPG
接 続 規 格[Connection]
G3/4 × Coupling、G1 × Coupling
適用法規等[Applicable Regulation]
認定品

DXFダウンロード

仕  様 Specification

設計圧力[Design Pressure]
2.1MPa
設 計 温 度[Design Temp.]
-10~70℃
耐圧試験圧力[Hydrostatic Testing Pressure]
3.5MPa
気密試験圧力[Leakage Testing Pressure]
2.1MPa

材 質 Material

Body
C3604B
Seat Packing
NBR
Disk
C3604B
Packing/Gasket
PTFE
